Solid Copper Gasket
We are China Solid Copper Gasket manufacturer and supplier.If you need of Solid Copper Gasket,please feel free inquiry us!For All Sealing Needs.
-
Copper Exhaust Gasket
We are China Copper Exhaust Gasket manufacturer and supplier.If you need of Copper Exhaust Gasket,please feel free inquiry us!For All Sealing Needs.
-
Copper Head Gasket
We are China Copper Head Gasket manufacturer and supplier.If you need of Copper Head Gasket,please feel free inquiry us!For All Sealing Needs.
-
Rubber O Rings
We are China Rubber O Rings manufacturer and supplier.If you need of Rubber O Rings,please feel free inquiry us!For All Sealing Needs.
-
Cork Rubber Gasket
We are China Cork Rubber Gasket manufacturer and supplier.If you need of Cork Rubber Gasket,please feel free inquiry us!For All Sealing Needs.

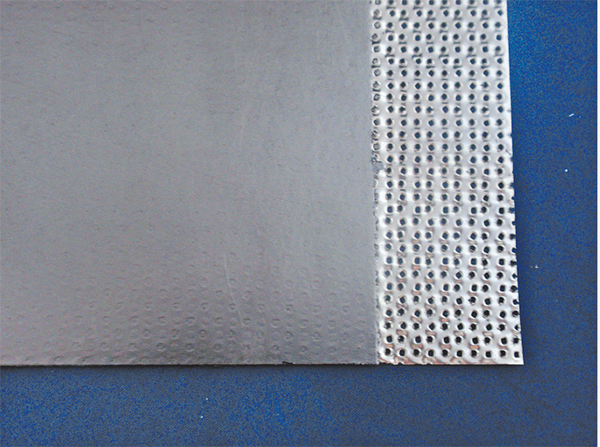

Tanged Metal Reinforced Graphite Sheet
Graphite Sheet Reinforced with tanged metal insert is made from Kaxite B201 Flexible graphite sheet through specially pressing or sticking process. The insert materials can be SS304, SS316, Nickel, etc. It used in kinds of conditions, and various gaskets. .
Description
> Made for various gaskets
> Suitable for petrochemical, mining, vessels, boilers, piping and duct, pumps and valves, flanges
Prime Features
> Lone life and less maintenance
> Replacement for asbestos, new more applications are being indentified daily.
> Excellent comprehensive properties
> Good compressibility and resilience, small stress relaxation, fine compensation function
> Permanently elastic, even in hot-cold cycles over the entire temperature range, no aging, no brittleness, no hot or cold flow.
Technical Data
| Item | Industrial grade | Unclear grade |
| Tolerance of density g/cm3 | +/-0.06 | +/-0.05 |
Carbon content  %
|
98/99 | 99.5 |
|
Tensile strength Mpa
|
3~20 | 5~25 |
|
Compressibility %
|
30 | 30 |
|
Recovery %
|
15 | 15 |
| Sulphur content | 1200 | 700 |
| Chlorine content | 50 | 25 |
| Stress relaxation rate % | 10 | 10 |
| Lgnition loss | 2.0 | 0.5 |
under oxidizing environment-240~+3500
under non-oxidizing environmentPH: 0~14
Dimensions
| Item | Sheets |
| Density g/cm3 | 1.0 |
| Length | 500, 1000, 1500mm |
| Width mm | 1000, 1500, 2000 |
| Thickness mm | 1.5~3.0 |
